Treatment Process

Process Scheme

01

Preliminary Treatment

  • Inlet
  • Screening
  • Grit Chamber
02

Primary Treatment

  • Prim. Sedim.
  • Pre-Aeration
03

Secondary Treatment

  • Selector
  • Activ. Sludge
  • Sec. Sedim.
05

Sludge Treatment

  • Thickening
  • Digestion
  • Dewatering
  • Composting
04

Tertiary Treatment

  • TSE
  • Discharge
  • Disinfection
  • Filtration
04

Tertiary Treatment

  • TSE
  • Discharge
  • Disinfection
  • Filtration
05

Sludge Treatment

  • Thickening
  • Digestion
  • Dewatering
  • Composting

Wastewater Treatment Plant

Plant - Key Data

  • Fenced Area: ca. 68.5 ha
  • Interconnecting Pipelines: ca. 32 km PEHD
  • Reinforced Concrete: ca. 190,000 m3
  • Reinforcement: ca. 24,000 t
  • Roads: ca. 10.5 ha
  • WWTP Umm Al Hayman Qd=500,000 m3/d; 1,725,000 PE

Plant: Process Scheme

Parameter Units Stage 1 Stage 2
daily flow
averege m3/d 500,000 700,000
max.daily m3/d 550,000 770,000
average hourly flow Q24 m3/h 20,833 29,167
peak hourly flow Qmax m3/h 30,417 42,583

Emergency Sea Outfall

  • Only treated sewage effluent might be discharged in cases when TSE production is higher than TSE demand.

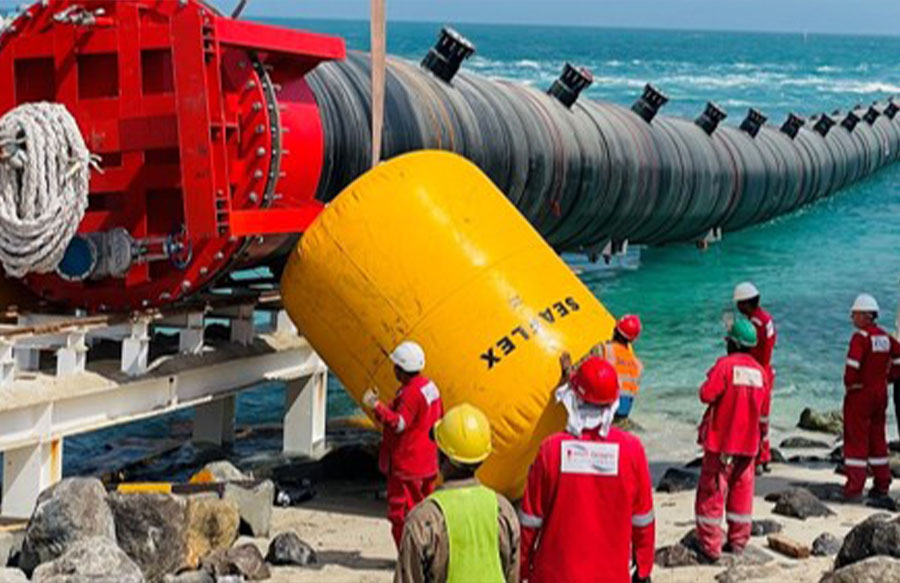

  • The ESO from the Stage 1 Plant to the sea originates near the Northeastern corner of the plant area in a straight line towards the sea where it will be extended for about 2 km into the sea.
  • The ESO will lead first through an open area, then cross the E40 road, then again lead through an open area parallel to a local road and, just before the shore line, cross a fenced plot which is owned by the State of Kuwait

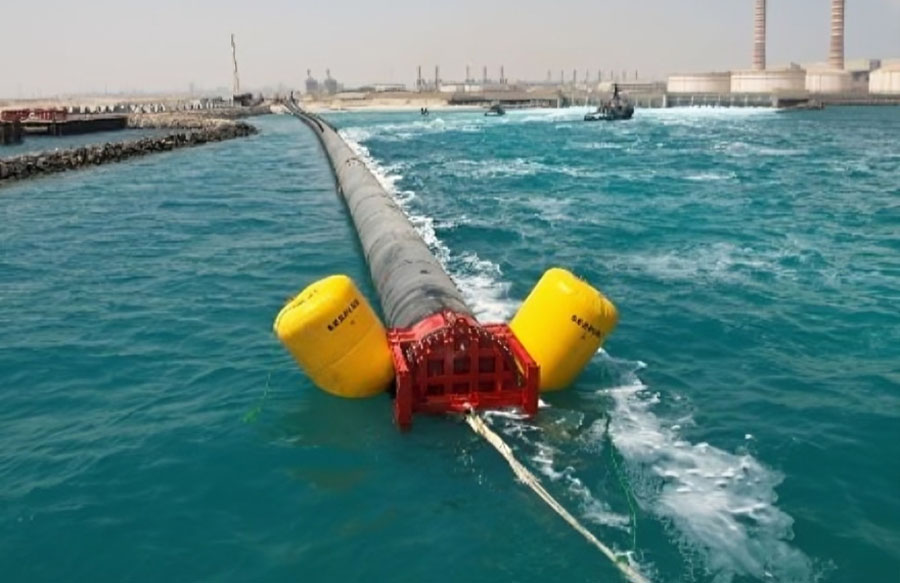

  • The total length of the ESO is approximately 3.5 km with an additional 2 km pipeline leading into the sea.

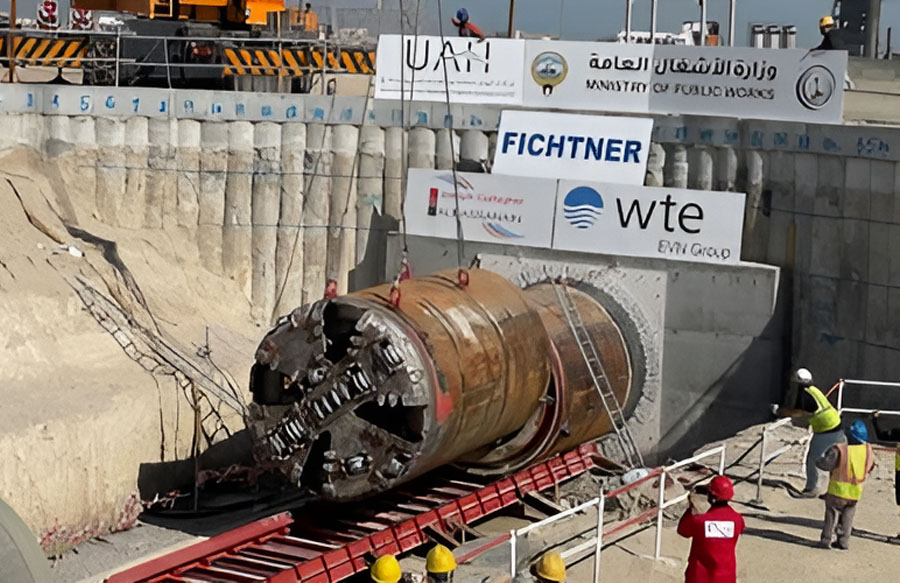

  • Construction method: onshore — open cut; offshore - microtunneling

Electrical Special Facilities

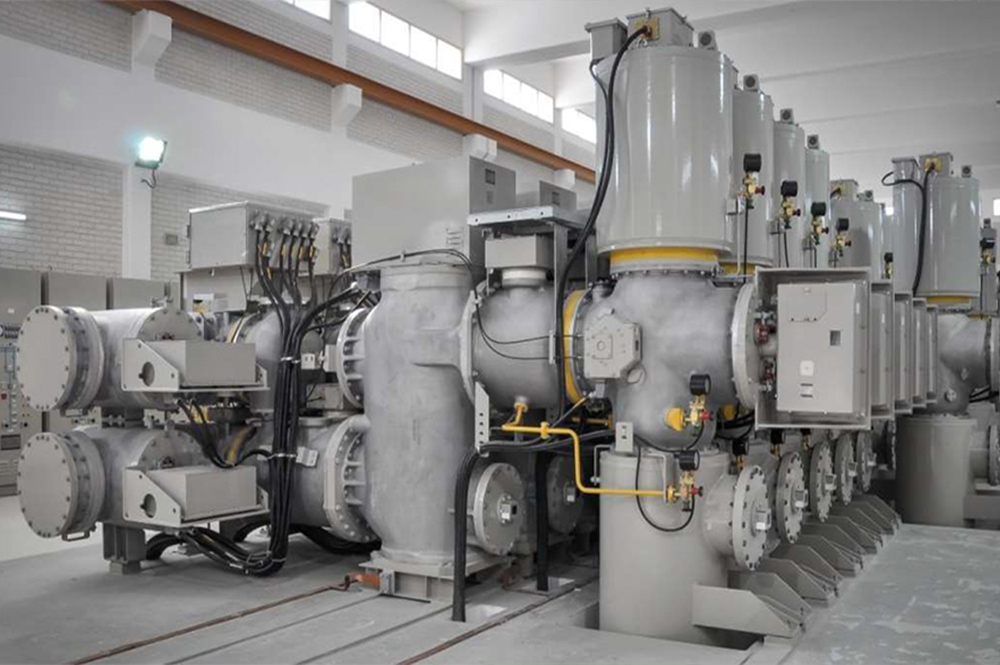

  • Construction of a 300 kv electrical substation including access road and overhead infeed line for the Stage 1 Plant and Stage 2 Plant
  • Capacity: 45 mw

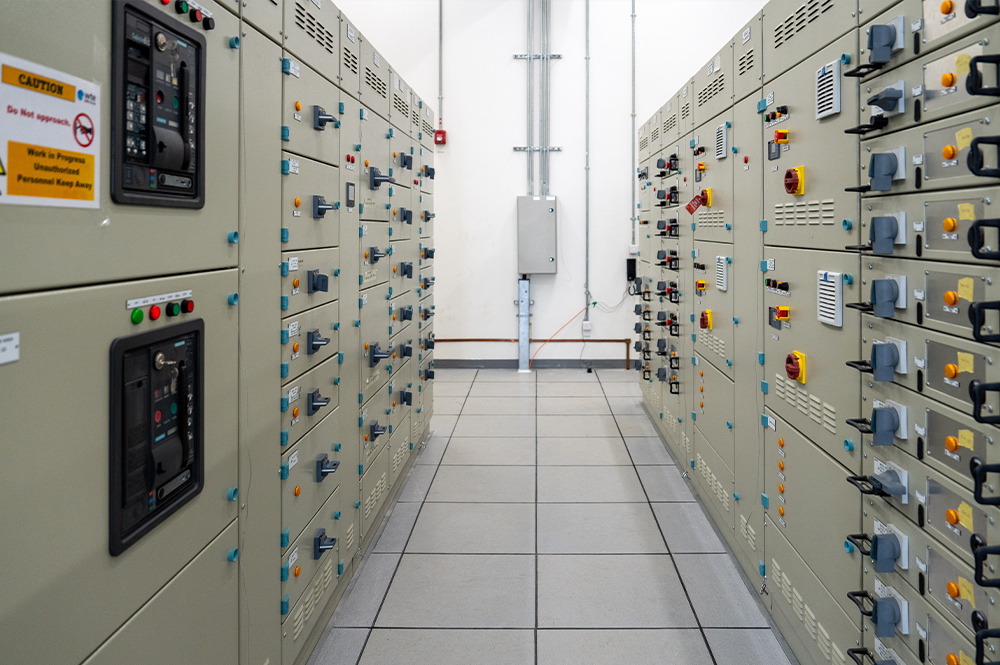

  • ESF for power supply of plant and other customers

Wastewater Transmission System \ Design Build Operate

DBO RESERVOIR NETWORK

Egailah Waste Water Pumping Station, Egailah Additional & OGAL F pumping station

  • Egailah Waste Water Pumping Station (WWPS) was commissioned in the year 2011 and delivers wastewater with a current hydraulic capacity of up to 2.8 m3/s to the existing Riqqa WWTP.
  • The hydraulic capacity of Egailah WWPS shall be increased from 2.8 m3/s to 8.3 m3/s.
  • All upgrade measures shall be implemented without any interruption of the operation of the Egailah WWPS.
  • New substation (132/11 kv) to deliver sufficient power for the upgraded Egailah WWPS.

Sabah Al Ahmed Pumping Station

The new Sabah Al Ahmed WWPS will be locatd in he souh west of the project area. The hydraulic capacity of sabah Al Ahmed WWPS will be 2.18 m3/s

The wastewater will be transferred to the stage 1 Plant


Main WW Pumps at WWPS Sabah al Ahmed (capacity:2.18 m3/s)

New WWPS Sabah Al Ahmed
Number of Pumps 6(4+2)
Installation dry installed
Hydraulic Capacity [m3/s] 0.545 (per pump)
Delivery head [m] 30.7
Rating [kw] 250
Type submersible

DBO - Piping Network for Wastewater Supply Line

  • The Treated Sewage Effluent (TSE) and Waste Water pipes network covers an overall length of more than 450 KM including 21 KM of microtunelling Network. The pipes are laid underground to have a safe and quick flow for the waste water to be treated.
  • The waste water transmission will be from Egailah and Sabah Al Ahmad and will be treated before sending to the reservoirs.

DATA Monitoring Center (DMC)

Signals from all stations will be connected and transferred to new Data Monitoring Center

The signals will be transferred via new optical cable.

Connected stations are :

WWPS Egailah WWPS Sabah Al Ahmed
WWTP Umm Al Hayman TSE Reservoirs
TSE Secondary Reservoirs Pipe chambers

DMC

  • Located at existing WWTP Riqqa
  • Office space for 200 MPW employees
  • Two laboratories completely furnished and equipped for use of the Project Company and the Buyer to carry out the TSE analysis

Reserviors

  • Various reserviors are built to store the treated water, among a total of 39 reserviors one is mega reservior with a capacity of 160000 m3
  • 6 are 40000 m3 , 32 secondary reserviors in which 5 are 3000 m3 and remaing are 2000 m3.
